Refrigerator-Repair



The following are the step-by-step procedures in doing a refrigerator-repair.

unplug refrigerator
Unplug power cord of the refrigerator from the wall outlet
Removing Freon
Remove freon from the system and store it in a container
Removing Drain Pan
Remove the bottom drain pan from the top of the compressor
Installing Current Relay
Remove the current relay from the side of the compressor


Brazing Suction
Melting and disconnecting suction line from the compressor

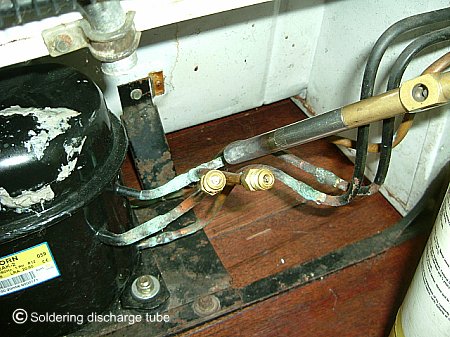

Brazing Discharge
Melting and disconnecting discharge line from compressor
Removing/installing Compressor
Removing the old compressor and replacing it with a new one

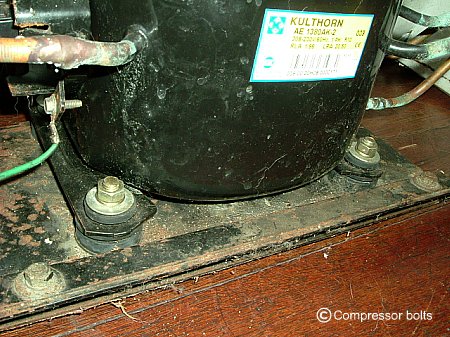

Installing Compressor Bolts
Installing the four compressor anchor bolts to the chassis

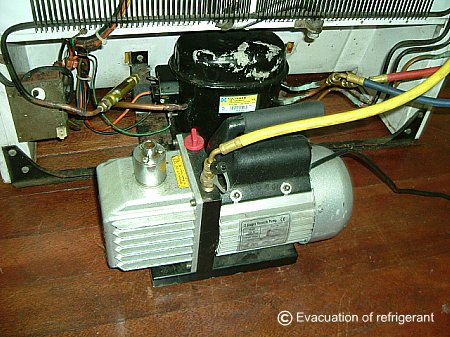

System Evacuation
Using a vacuum pump to remove the unwanted dirt and moisture content
Leak Testing
Leak testing the newly soldered joints with soap bubbles for evident leak

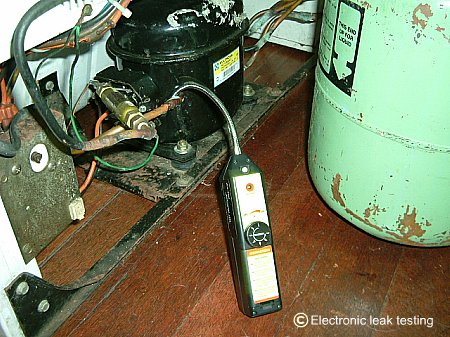

Leak Testing
Leak testing the newly soldered joints with electronic leak tester
Charging Freon
Charging the system with refrigerant according to specs


Running Current Checking
Checking the running current of the compressor during charging

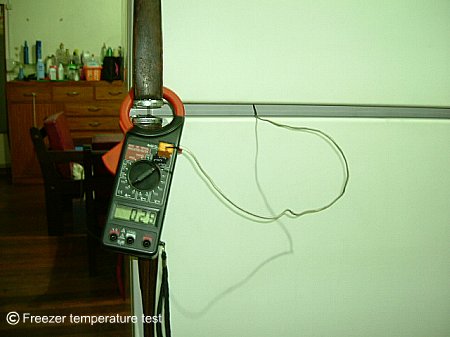

Freezer Temperature Testing
Testing the actual running temperature of the freezer compartment

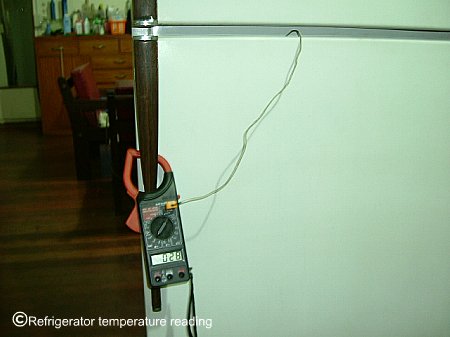

Refrigerator Temperature Testing
Testing the actual running temperature of the refrigerator compartment


Please exercise "safety first" in doing a refrigerator-repair. Work in a well ventilated area. You must have water outlet and fire extinguisher in your working place. Avoid inhaling the refrigerant, and watch out for the torch so that you won't burn your hands.

If you have any questions regarding the repair, please feel free to email me and I shall answer your questions professionally. Or you can call our telephone number ++632-242-5328 and I will answer your questions personally.
